ENTAsplit S

Product FEATURES

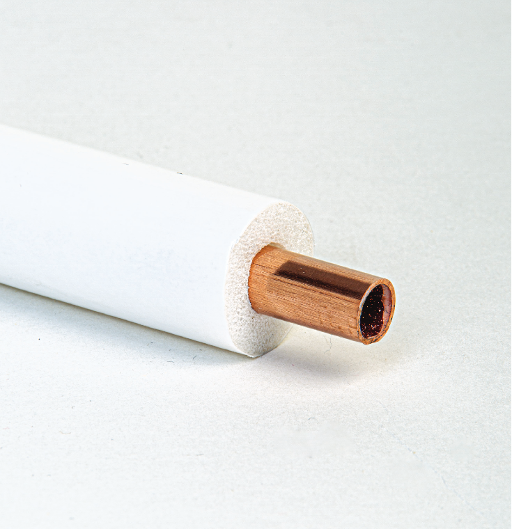

ENTAsplit S (SMOOTH surface) is a pre-insulated SINGLE copper tube, made for air conditioning systems.
Characteristics of COPPER
Manufactured in accordance with EN 12735-1 (or ASTM B280), with Cu ≥ 99.9% copper purity, deoxidized Phosphorus (0.015% ≤ P≤ 0.040%) suitable for the transport of popular old generation HFC refrigerant gases (R407C - R410A), and new generation mildly flammable gases A2L class (R32).
Physical state Annealed R220N / mm2.
High internal cleaning with residue C <20mg / dm2.

PACKAGING

Each single coil is well sealed at both ends, to ensure perfect cleaning inside the tube. The insulating sheath is marked at each meter with dimensions, normative references and traceability codes. Each coil can be packaged individually with stretchable LDPE.

Characteristics of INSULATION

Manufactured in compliance with the EN 1413: 2009 + A1: 2013 standard, the polyethylene foam sheath with closed cells ensures a high resistance factor to the diffusion of water vapor (μ≥6.300), a thermal conductivity of ʎ ≤ 0.040 W/m*K at 40°C and a reaction class to fire accor-ding to the European standard EN13501-1: BL S1 d0.
Our particular sensitivity to ecological issues is confirmed by an expansion totally 'green' process that does not involve Chlorofluorocarbons (CFC’s) and Hydrochlorofluorocarbons
(HCFC’s).
Operating temperature from -40°C to + 90°C.White LDPE anti-scratch protective film with smooth finish.
